Pulse Output 2 MHz Interpolation 4 Axis ADTECH USB Linear CNC Motion Control Card

Overview:

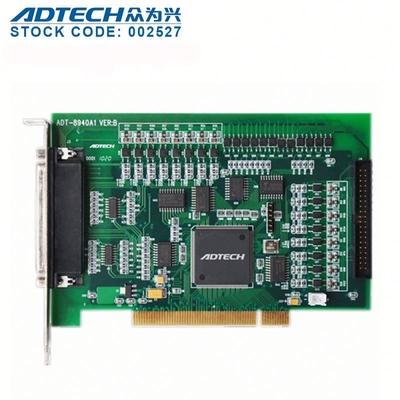

ADT-8940A1 motion control card is one of ADTECH axis motion control card PCI bus computer -based members , a system can support up to 16 control card , can control 64 servo / stepper motor, plug and play . Mainly used in multi-axis motion control point , with T-type , S -curve acceleration and deceleration, hardware stop, linear interpolation, hardware cache, position latch function, the product is widely used in testing, advertising, printing , PCB processing and other industries.

Hardware Index

1. 32-bit PCI bus , Plug and Play

2. Controllable number of axis: 4 axis
3. Differential pulse output for each axis, the maximum frequency 2MHz;
4. Each shaft encoder feedback channel A / B phase difference between the pulse input, 32 count frequencies up to 2MHz;
5. Pulse Output Type : Pulse + direction (PUL + DIR) or double-pulse (CW + CCW)
6. Large-capacity hardware cache , the maximum hold 2048 bytes.

Control function

1. Any hardware 2-4 axis linear interpolation ;
2. Hardware buffer interpolation, circular interpolation software ;
3. Change the speed and movement to achieve the target position ;
4. T -shaped , S -shaped curve acceleration and deceleration ;
5. Hardware stop function , multi-axis to move/stop at the same time ;
6. Multi-axis position of the external signal to trigger the latch ;
7. Zero function in many ways ;
8. Handwheel and external signals operating quantitatively driven , continuous driving .

Software support

1. Operating system: DOS/WINDOWS95/98/NT/2000XP/WINCE,WIN7
2. Programming environments : C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC
3. Application examples of open- DOS and Windows

Application environment

1. Storage temperature:-20-80℃

2.Temperature: 5-95 % non-condensing

3. Operating temperature: 0-60℃

Dedicated purpose IO

1. Machinery positive and negative limit position , origin signal
2. osition latch input signal
3.Handwheel control signal
4. Hardware stop signal
5. Alarm input signal
6. Alarm clear signal
7.Servo enable signal

General purpose IO

1, signal when not in use can be set to Universal IO
2, can be up to:
1.32 general-purpose digital inputs, all optocoupler isolation;
2.32 open collector outputs.

Software support

1. Operating system: DOS/WINDOWS95/98/NT/2000XP/WINCE,WIN7
2. Programming environments : C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC
3. Application examples of open- DOS and Windows

Applications:

Biological, medical equipment, semiconductor automatic processing and testing equipment, packaging Equipment: automatic packaging machine, advertising Equipment, drawing word machine, slot machine, printing&pressing machine, PCB processing equipment, SMT machine, PCB drilling machine.
