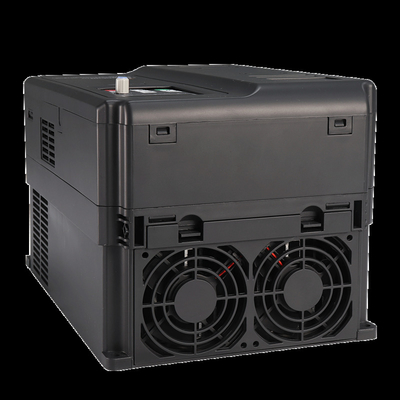

Name: Motor Speed Control 220v To 380v Single Phase 3 Phase Converter VFD Control Frequency Motor Speed Inverter
Brand: Motor Speed Control 220v To 380v Single Phase 3 Phase Converter VFD Control Frequency Motor Speed Inverter
SKU: DFL5800-220-4
Price: 1 USD
Availability: InStock
Rating: 5 (135 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: DFL5800-220-4

Type: DC/AC Inverters

Output Type: Triple

Output Current: 11-20A

Output Frequency: 0-400HZ

Size: 186*126*166MM

Weight: 4KG

Certificate: CE

Application: Motor speed control

Inverter type: 220V to 380v

Rated power: 4kw-37kw

Package: Color Box

OEM: Accepted

Phase: Single to 3 Phase

Input voltage range: AC170-275V

Product name: Frequency Inverter

Grundinformation

Zertifizierung: CE

Model Number: DFL5800-220-4

Zahlung und Versand AGB

Packaging Details: Carton

Supply Ability: 1000 Unit/Units per Month

Produkt-Beschreibung

Product Description

1. Input power supply 1PH 220V (±25%); output: 3PH 0-380V

2. Dedicated DSP motor main control IC, voltage vector control, pureSVPWM output

3. The IPM module is the core component of the power drive with built-in reliable protections such as over-current,short-circuit and over-temperature; the failure rate is extremely low

4. Five-digit digital tube display, five status indicators(display for frequency, voltage, speed, counter, forward and reverse status, fault, etc.)

5. The output frequency range is0.1-400HZ, accuracy: 0.1HZ

6. Analog input 0-5VDC, 0-10VDC, 0/4-20mA

7. Digital operation panel can be connected with extensioncord, and parameters can be copied freely

8. X5, X6 multi-function input terminals can be set with multiple start and stopmethods: two-wire A, B mode, three-wire A, B mode

9. X1-X4 multi-function input terminals can be combined with 16 speeds,16-segment acceleration and deceleration time (0.1-6500 seconds) can be set independently

10. The user can set the V/F curvearbitrarily

11. Multi-function relay output, realize relay output in various states such as running, frequency reaching, external
abnormality

12. Instantaneous power failure restart speed tracking function, automatic voltage stabilization function, DC brake,
PLC program control and other functions

13. The drafting function is suitable for unwinding and unwinding, keeping the linearspeed constant within a certain accuracy, etc.

14. Perfect protection function: overvoltage, undervoltage, overload,overtemperature, output short circuit protection

15. Parameter password protection, limited use time, automatic parameter recovery

model	power	Rated current	Adapted motor	description	size(mm)
DFL5800-0R75-220-4-5010	0.75KW	2A	Motors below 0.37KW	220v input to 380v ouput	186126166
DFL5800-1R5-220-4-5010	1.5KW	4A	Motors below 0.75KW
DFL5800-1R5-220-4-5010	2.2KW	5.8A	Motors below 1.1KW
DFL5800-4R-220-4-5010	3.7KW	11A	Motors below 2KW			248161185
DFL5800-5R5-220-4-5010	5.5KW	15A	Motors below 2.2KW
DFL5800-7R5-220-4-5010	7.5KW	20A	Motors below 3.7KW
DFL5800-11R-220-4-5010	11KW	29A	Motors below 5.5KW			322208192
DFL5800-15R-220-4-5010	15KW	40A	Motors below 7.5KW			322208192
DFL5800-18.5R-220-4-5010	18.5kw	49A	Motors below 9KW			461250200
DFL5800-22R-220-4-5010	22KW	58A	Motors below 11KW
DFL5800-30R-220-4-5010	30KW	79A	Motors below 15KW
DFL5800-37R-220-4-5010	37KW	97A	Motors below 18.5KW			582375255
