Stair Climbers 80A 60V Variable Speed ​​Electric Motor Controller 4 Brush DC Hall Sensor Motors Driver

1 piece
MOQ
$129.00(1 - 198 pieces) $109.00(199 - 199 pieces) $100.00(>=200 pieces)
Preis
Stair Climbers 80A 60V Variable Speed ​​Electric Motor Controller 4 Brush DC Hall Sensor Motors Driver
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 1 year
Model Number: BP4-6030
Voltage: 20V~60V
Max Current: 30A
Product name: Motor Speed Controller
Control Mode: Square wave current driving mode
Feedback: Hall sensor/sensorless
Waterproof grade: IP67
Customized: Yes
Colour: Black
use/storage temperature: 0~+50℃ / -25~+55℃
Application: Stair Climbers, Forklifts, Medical Equipment, Robot Vacuums
Grundinformation
Model Number: BP4-6030
Zahlung und Versand AGB
Packaging Details: by cartons
Supply Ability: 1000 Set/Sets per Month
Produkt-Beschreibung
Product Description

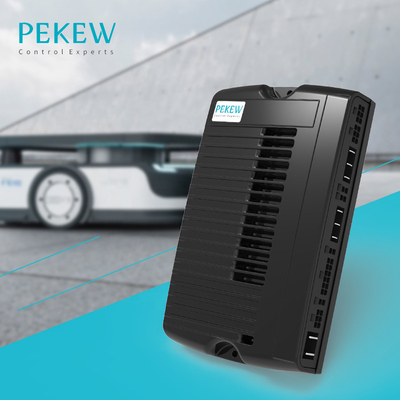

BP4-6030

The PEKEW model BP4-6030 is a motor speed controller that can drive 4 brushed motors.It provides efficient,optimal control of permanent magnet drive motors for battery powered industrial vehicles,such as stair crawlar and stair climbing wheelchair,etc.

Specification

* Motor Type: Brush DC
* Application/Function: Stair Climbers, Forklifts, Medical Equipment, Robot Vacuums
* Nominal Voltage Range(VDC) :20V~60V
* Maximum Brushed Motor Current: 30A
 * Control Method: Square Wave
Specification
Motor controller model
BP4-6030
Rating
Continuous output current of DC brush motor (A)
0~20
Brushless DC output current (A)
0~30
total output current (A)
100
Main circuit
Input voltage range (V)
20-60
Maximum output current with brush (A)
30
Power（W）
500
Input voltage range of control power supply (V)
20-60
Specifications
Control mode
Square wave current driving mode
Feedback
Hall sensor ,sensorless
Service conditions
Use / storage temperature
0～＋50℃ / -25～＋55℃
Use / storage humidity
Below 90% RH (no condensation)
Vibration / shock resistance
4.9m/s² / 19.6m/s²
Protection level
IP67
Protection function
Overcurrent, overload, undervoltage, overvoltage and overtemperature

Functional features:

* With brake control;
* With high and low speed control;
* Protection functions: overload protection, overcurrent protection, undervoltage, overvoltage protection, over temperature protection, etc;
* Angle recognition function;It is suitable for applications requiring angle state,and the angle control requirements can be customized;
* Motor forward / reverse function;
* Support 60 ° and 120 ° Hall position sensors;
* Adjustable parameters;
* Speed regulation and braking functions can be realized through external switches;
* Support handle control;
* Application scenario: Electric Forklift,Golf Carts,Elderly Scooter,Crawler Climbing Machine,Electric Wheelchair Climbing Machine,Electric Wheelchair Etc.

*Make motors working more silently, safer,saving more energy and having a higher torque output.
Application
Company Profile
Equipped with advanced core technology of motor drive,professional motor drive algorithm,modern production lines and full testing facilities,PEKEW has been developing motor control products for more than 10 years.It is a motor control enterprise with integrated capabilities in both developing and experimental testing. PEKEW motor control products are widely used to control brushless DC motors,AC induction motors,permanent magnet motors and industrial servo motors.Meanwhile,PEKEW has become a gray hand in manufacturing.developing and designing motor controllers for material equipment,all terrain equipment,sweepers,wheelchairs,aerial lift,AGVs and medical mobility equipment,etc.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

Delivery ways:
1. By International Couriers: DHL, UPS, FEDEX, TNT ect.
2. By Air: Delivery from the guangzhou/shenzhen airport to customer's destination city air port.
3. By Sea: Delivery from the guangzhou/shenzhen sea port .
FAQ
1. Do you accept to customize a motor controller sample?
Yes. We can customize the driver sample for some requirements.
2. What industries your controller can be used in ?
Our motor driver can be used in widely industries, especially in Material handling equipment, electric hand truck, AGV,Wheelchair, Electric car etc..
3. What is your terms of payment?
Small orders (≤99pcs)request 100% payment before shipping.Mass orders 30% deposit for production,70% balance by TT before shipping.
4.What is the warranty time?
We offer 12-month warranty time.
5.Are you a trading company or manufacture？
We are manufacture located in zhongshan,guangdong province,sales office located in guangzhou.
welcome to visit us.
