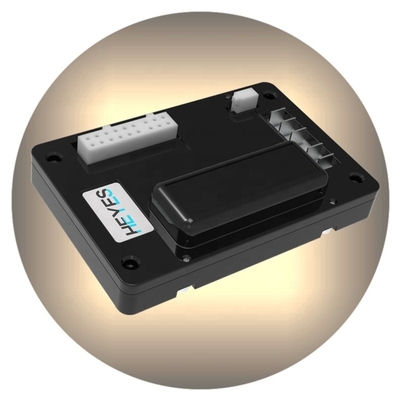

Category | Signal name | Definition | Wire number / color | Remarks |
Power | Positive pole of power supply | B+ | brown | 6.3 snap spring |
Negative pole of power supply | B- | blue | 6.3 snap spring |
Category | Signal name | Definition | Wire number / color | Remarks |
Motor phase | Phase U | A | yellow | 6.3 snap spring |
Phase V | B | green | 6.3 snap spring | |
Phase W | C | blue | 6.3 snap spring |
Signal name | Definition | Remarks |
Holding brake positive pole | X1 B+ | It is connected with the positive pole of the power supply |
Holding brake negative pole | X1 BZ | |
Motor Hall signal | X2 Ha | |
X2 Hb | ||
X2 Hc | ||
Motor Hall supply negative pole | X2 0V | |
Motor Hall supply positive pole | X2 HV | |
Stepless speed regulation | X3 T | Analog voltage input |
High and low speed switching control signal | X3 C | Low speed when suspended;High speed when connected with 0V |
Direction switching control signal | X3 R | Forward when suspended;Reverse when connected with 0V |
Motor start stop control signal | X3 H | It stops when it is suspended;Start when connected with 0V |
0V | X3 0V | |
3.3V output | X3 3V3 | |
5V output | X3 5V | |
Communication clock pin | X3 CL | |
Communication data pin | X3 CH | |
0V | X3 0V | |
Serial port receiving | X3 RX | |
Serial port transmission | X3 TX |
