3 Axis CNC Controller Kit 3pcs Nema23 Stepper Motor Driver + TB6600 Stepper Motor + Mach3 USB Motion Board STB4100 V2.1 STB4100 V2.1

1 Piece
MOQ
$116.00(1 - 2 Pieces) $110.00(3 - 9 Pieces) $107.00(>=10 Pieces)
Preis
3 Axis CNC Controller Kit 3pcs Nema23 Stepper Motor Driver + TB6600 Stepper Motor + Mach3 USB Motion Board STB4100 V2.1 STB4100 V2.1
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 3months-1year
Model Number: STB4100 V2.1
Phase: 2
Type: Hybrid
Current / Phase: 4A
support system: Windows XP ,7,8 system
Zertifizierung: CCC, ce, ISO
Grundinformation
Zertifizierung: CCC, ce, ISO
Model Number: STB4100 V2.1
Zahlung und Versand AGB
Packaging Details: We usually use carton,if you have any special requirement,pls let me know.
Produkt-Beschreibung
We Have EU US RU warehouse

EU Warehouse can free shipping to:

All EU countries, UK,Switzerland, Cyprus, Malta, Norway and etc.

Ship via DE-DHL. Free VAT.

US warehouse can free shipping to:

United States
(excluding Hawaii and other islands)


Via UPS. Free VAT.

RU warehouse can free shipping to:

Russian Federation



Via IML Express. Free VAT.

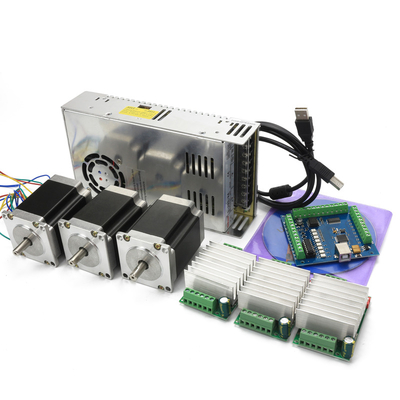

Product packaging
* 3x 23HS8430 Stepper motor

* 3x TB6600 stepper motor driver (white)

* 1x Mach3 USB Motion Card STB4100 V2.1

* 1x 350W 24V switching power supply

* 1x cable & CD

· English user manual for breakout board and stepper motor driver will send by email.

Product Description
Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
3. 4 general-purpose opto-couplers isolation input : can connect the limit switch, emergency stop
switch, auto tool zero, home switch etc.
4. Support for connecting electronic handwheel;
5. Have 0-10V signal output , you can use mach3 software to control the spindle motor speed.
6. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling
the spindle starts, forward rotating and reverse rotating, pumps or other device;
7. 1 status LED, indicate connection status on the board

Mach3 USB Motion Card STB4100 V2.1
1.2.Software license application:
Copy license files “Mach1Lic.dat” from “mach3 software folder”,to C:\Mach3 Cover the
original file,Reset Computer（must reset the computr,please don't open the software dircetly!）
Way above the license for DIY or study purposes only, not for commercial use.
1.3. Installation the software of the USB motion card:
This USB motion card does not need install any USB driver,Windows2000/XP/Windows7,can
directly identify.
1.3.1 Connecting the USB cable to the PC and the motion card:
The first installation of motion control card, take about 10s, when the green led lights on motion
control card, indicating that the connection is successful, return the following tips when you
install on your computer

Feature:
1. The output current is steplessly adjustable to meet your various application requirements.
2. Automatic half-flow function. It is also equipped with an automatic half-flow switch, which is easy to use.
3. Use 6N137 high-speed optical lotus to ensure high speed without losing step.
4. The subdivision setting instructions are printed on the back of the board.
5. Adopt enlarged radiator, good heat dissipation.
6. With output short-circuit protection function, worry-free use.
7. Adopting the common anode input mode, there are two input terminals, the wiring is more convenient.
Parameters:
1. The working voltage is DC 10V-45V. It is recommended to use switching power supply DC32V for power supply.
2. Adopt 6N137 high-speed optical lotus root to ensure high speed without losing step.
3. Using Toshiba's new high-current, high-voltage TB6600HG brand new original chip, with low-voltage shutdown, overheating
shutdown and over-current protection circuits, and short-circuit protection added compared to TB6560.
4. The rated maximum output reaches: ±4.5A.
5. Suitable for 42, 57, 86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.
6. Automatic half-flow function.
7. Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions.

FAQ
1.Q:Can I get any sample firstly before place order?
A:Of course, we are honored to offer you samples for your check.

2.Q:Do you have the products in stock?
A:Each of our products has a regular quantity of stock in the warehouse, if the order quantity is not large, it can be shipped
directly. If you need more, please contact us to verify the delivery date, thank you.

3.Q:What's the delivery time?
A:It usually takes about 5-7 work days, There will be a slight gap between specific products and quantities.

4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.

5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
Our service
* Warranty: 12 months, (Part of the product is 6 months.)

* Contact Us: We have 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
