Startseite /Produkte/Wechselstrommotorprüfer/Clvdrive China AC Drive Manufacturer 3 phase 380V VFD 50HZ 60HZ 15kw 18.5kw 22kw Frequency Inverter for motor

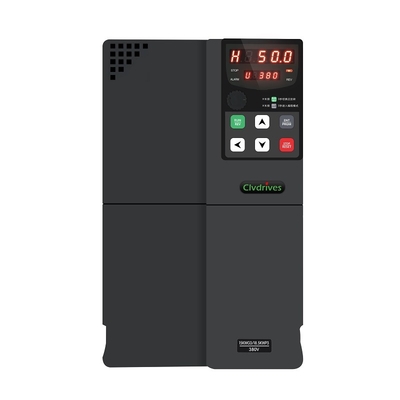

Clvdrive China AC Drive Manufacturer 3 phase 380V VFD 50HZ 60HZ 15kw 18.5kw 22kw Frequency Inverter for motor

1 Piece
MOQ
$214.00(1 - 99 Pieces) $204.00(100 - 299 Pieces) $193.00(>=300 Pieces)
Preis
Clvdrive China AC Drive Manufacturer 3 phase 380V VFD 50HZ 60HZ 15kw 18.5kw 22kw Frequency Inverter for motor
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: V1000-V0150G3,V1000-V0185G3,V1000-V0220G3
Warranty: 18 months
Type: General Purpose Inverter
Zertifizierung: CE/ISO9001
Customized: Yes
Control Mode: V/F Control, V/F Control
Rated Power: 15KW-22KW
Nominal Voltage: 380V
power phase number: Three Phase
Certificate: CE/ISO9001
Color: Black
MPPT: High Efficiency
Protection: Overload,Over current,Over voltage
Output voltage: 0-380V
Start Torque: 0.5Hz/150%,0Hz/180%
Material: Plastic
Overload Capability: 150%- 60s,180%- 3s
Grundinformation
Zertifizierung: CE/ISO9001, CE/ISO9001
Model Number: V1000-V0150G3,V1000-V0185G3,V1000-V0220G3
Zahlung und Versand AGB
Packaging Details: We have cartons and wooden boxes,which are packed in cartons below 75KW and wooden boxes above 93KW. Thickened shockproof foam is filled inside to prevent damage to equipment in trasut.
Supply Ability: 3000 Piece/Pieces per Month
Produkt-Beschreibung

Product Description

Clvdrive China AC Drive Manufacturer 3 phase 380V VFD 50HZ 60HZ 15kw 18.5kw 22kw Frequency Inverter for motor

Single-phase power supply: 220V, 50/60Hz
Product ID Adaptation motor Rated Power Rated Output Current(A)
Product Dimensions
L*W*H(mm)
V1000-V0007G1 0.75KW 1HP 0.75KW 220V 4 170*86*131.5
V1000-V0015G1 1.5KW 2HP 1.5KW 220V 7 170*86*131.5
V1000-V0022G1 2.2KW 3HP 2.2KW 220V 10 180*96*151
Three-phase power supply: 380V, 50/60Hz
V1000-V0007G3 0.75KW 1HP 0.75KW 380V 2.5 170*86*131.5
V1000-V0015G3 1.5KW 2HP 1.5KW 380V 3.7 170*86*131.5
V1000-V0022G3 2.2KW 3HP 2.2KW 380V 5.1 170*86*131.5
V1000-V0040G3 4KW 5HP 4KW 380V 8.5 180*96*151
V1000-V0055G3 5.5KW 2HP 5.5KW 380V 13 221.6*113*166.5
V1000-V0075G3 7.5KW 10HP 7.5KW 380V 16 221.6*113*166.5
V1000-V0110G3 11KW 15HP 11KW 380V 25 265*160*171.5
V1000-V0150G3 15KW 20HP 15KW 380V 32 265*160*171.5
V1000-V0185G3 18.5KW 25HP 18.5KW 380V 38 302.5*192*171.5
V1000-V0220G3 22KW 30HP 22KW 380V 45 302.5*192*171.5

Products parameters

Basic Function

Power range 3 phase AC 380V (-15%~+30%)
Maximum Frequency Vector Control:0~500Hz V/F Control:0~500Hz

Carrier Frequency

 0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics

Input Frequency Resolution

Digital Setting: 0.01Hz

Analog Setting: maximum frequency ×0.025%
Control Mode

Open Loop Vector Control(SVC)
V/F Control
Startup Torque

G Type: 0.5Hz/150%(SVC); 0Hz/180%(FVC);
P Type: 0.5Hz/100%
Overload Capability

G Type:150% rated current 60 seconds; 180% rated current 3 seconds;
P Type:120% rated current 60 seconds; 150% rated current 3 seconds
Torque Boost Auto Torque Boost Function;Manual torque boost 0.1%~30%
V/F Curve Linear V/F,multi-point V/F and square V/F curve (power of 1.2,1.4,1.6,1.8,2)
DC Brake

DC Brake Frequency: 0.00Hz to maximum frequency. Brake time: 0.0s to 36.0s

Brake current value:0.0% to 100.0%.
Jog Control

Jog Frequency Range:0.00Hz~50Hz

Jog Acceleration/deceleration Time 0.0s~6500.0s
Simple PLC and Multi-speed Running

It can realize at maximum of 16 segments speed running via the built-in PLC or control terminal
Built-in PID

It is easy to realize process-controlled closed loop control system

Auto Voltage Regulation(AVR)

It can keep constant output voltage automatically in the case of change of network voltage
Quick Current Limit Minimize the over-current fault, protect normal operation of the inverter

Personalized

Rapid Current Limit To avoid Inverter frequency over-current fault
Timing Control Timing control function: set time range 0Min~6500.0Min
Command Source

Operation panei reference, control terminal reference, and serial COM port reference. It can be switched in various ways.

Input Terminal

Standard:

5 Digital input terminals

2 Analog input terminals

1 Support 0-10V voltage input or 0~20mA current input.

Output Terminal

Standard:

2 Digital output terminals

1 Relay output terminal, which can be expanded into 2 channels

1 Analog output terminals, support 0~10V output voltage;

Environment

Altitude

Below 1000m

Ambient Temperature

-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)

Humidity

Less than 95%RH, without condensing

Vibration

Less than 5.9m/s (0.6g)
Details Images

Application

Packing & Delivery

We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.

FAQ

Q 1: Are you trading company or manufacturer ?
A: We are factory.

Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.

Q 4: What is your terms of payment ?
A:We accept T/T, L/C and Western Union,MoneyGram .

Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.

Q 6. Is there any discount ?
A. The discount will depend on the quantity you purchase.

Q 7. What is your supply capacity?
A. The week output of the factory exceeds 500 PCs.

Q 8.Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty for all the goods from us.

Q 9.Could M-driver provide technical support?
A.We' have more than 17 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
