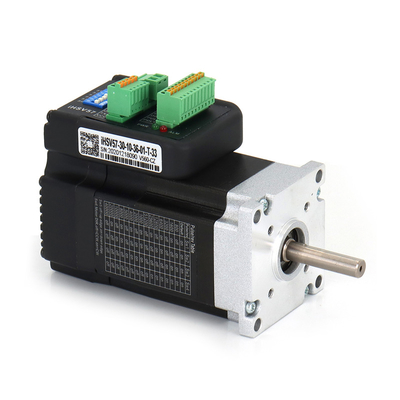

Aubalasti 100W NEMA 23 AC Integrated Servo Motor 0.29N.m 3000RPM 3.5A 36VDC Mini Servo Motor and Driver 57x76mm IHSV57-30-10-36-01-T-33

1 Piece
MOQ
Aubalasti 100W NEMA 23 AC Integrated Servo Motor 0.29N.m 3000RPM 3.5A 36VDC Mini Servo Motor and Driver 57x76mm IHSV57-30-10-36-01-T-33
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 3months-1year
Model Number: iHSV57-30-10-36-01-T-33
Input Voltage: 36VDC
Rated Power: 100w
Rated Current: 3.5A
Rated Speed: 3000rpm
Holder Torque: 0.29N.m
Shaft Diameter: 8mm
Speed Response Frequency: 200 (KHz)
SKU: WT042012251
Zertifizierung: CE
Grundinformation
Zertifizierung: CE
Model Number: iHSV57-30-10-36-01-T-33
Zahlung und Versand AGB
Produkt-Beschreibung
  Product
AC Integrated Servo Motor with Driver
Specifications:
Nema 23 Integrated AC servo motor 100W
Power: 100W
Rated speed: 3000RPM +/- 10%
Rated torque: 0.29N.m
Rated current: 3.5A
Introduction:
iHSV57-XX Integrated AC Servo Driving Motor is perfectly integrated AC servo drive into servo motor, adopts vector control in DSP
chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three
adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV57-XX is a series of stable performance,
high cost-effective motion control products.
Features:
1. Multi Pulse Input Modes Pulse+Direction
2. Opto-isolator Servo Reset Input Port ERC
3. Current Loop Bandwidth:（-3dB）2KHz(Typical)
4. Speed Loop Bandwidth: 500Hz(Typical)
5. Position Loop Bandwidth: 200Hz(Typical)
6. Motor Quadrature Encoder Input Interface: Differential Input(26LS32)
7. Download parameters via RS232C from PC or Text Display.
8. Users can definite subdivisions via external Dial-up switches or software.
9. Overcurrent, I2T, Over-voltage, Undervoltage, Overheat, Overspeed, Overerror Protections.
10. Green light indicates running, red light indicates protection or offline.
